High-Capacity Laser Fume Extraction for High-Speed Inline Laser Marking TMK-X500E

Product Specification

Specification	TMK-X50E	TMK-X100E
Machine Size	510 × 470 × 1050 mm	510 × 470 × 1050 mm
Rated Power	500 W	1000 W
Airflow	560 m³/h	780 m³/h
Airflow	≈330 CFM	≈459 CFM
Rotating Speed	8,000 rpm	12,000 rpm
Rated Voltage	220 V / 50 Hz	220 V / 50 Hz
Filtration Accuracy	0.3 μm	0.3 μm
Filtration Efficiency	99.997%	99.997%

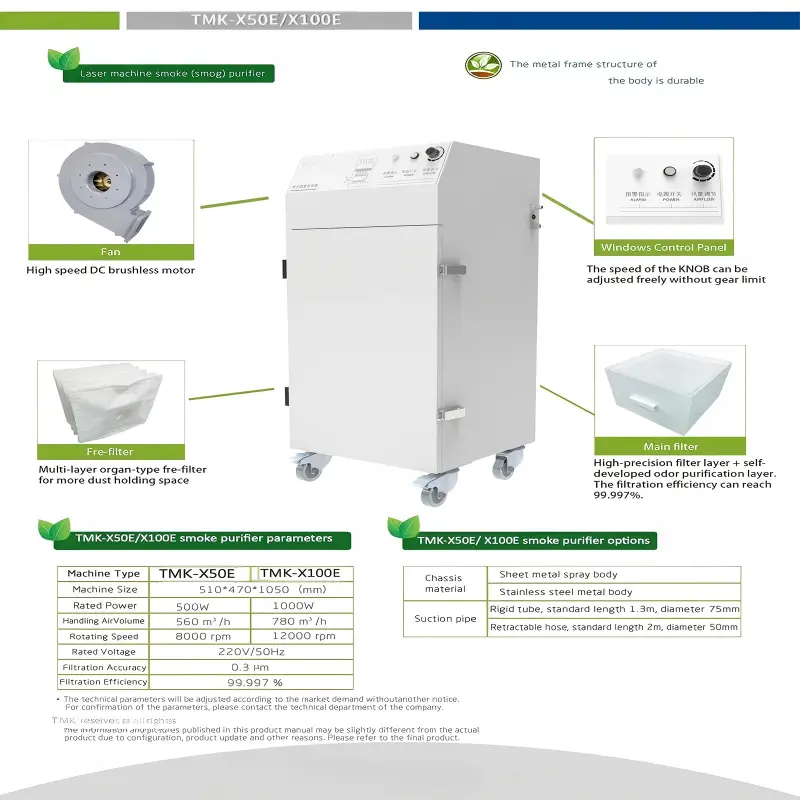

TMK-X50E/100E Laser Fume Extractor

The TMK-X50E is a high-performance industrial laser fume extractor designed
for high-speed laser marking applications. Equipped with a 500 W fan
motor and a multi-stage filtration system, it effectively captures
dust, fine particles and odors generated during laser marking.

The system combines a multi-layer bag filter, H14 high-efficiency
filter and advanced deodorization layer, achieving filtration
efficiency of up to 99.997% for particles as small as 0.3
μm.

Its bottom air intake design provides increased dust-holding capacity, while
the IP55-rated metal enclosureoffers reliable protection for
demanding industrial environments.

Applications:

Laser marking on films, cartons, bottles, flexible packaging, pharmaceutical
packaging and food production lines.

Key Features:

500 W high-performance fan

H14 high-efficiency filtration

Up to 99.997% filtration efficiency

Advanced odor removal

High dust-holding capacity

IP55 protection

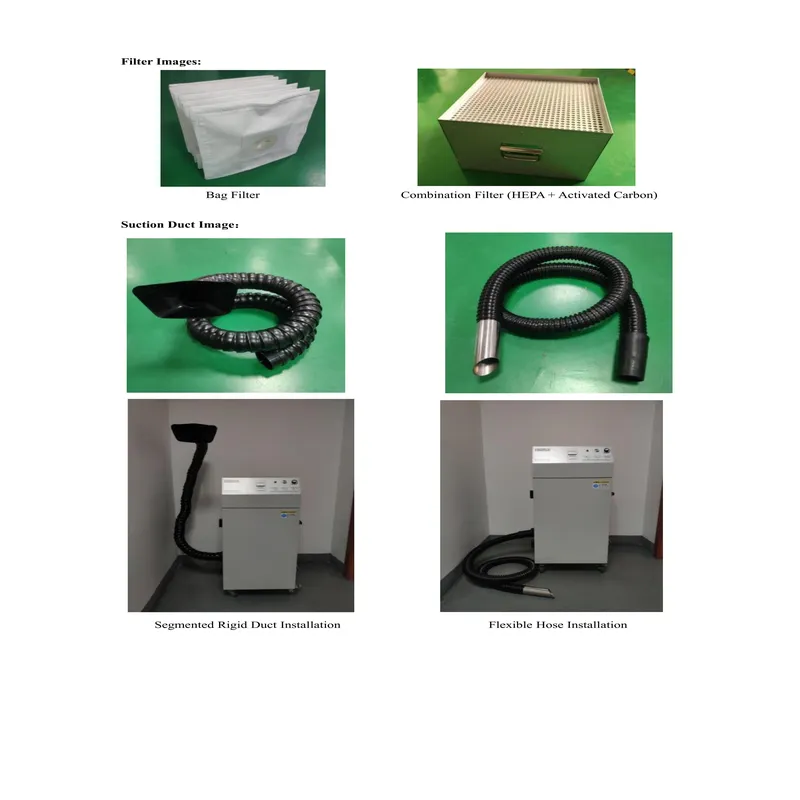

Flexible duct installation options

Suitable for continuous industrial laser marking
